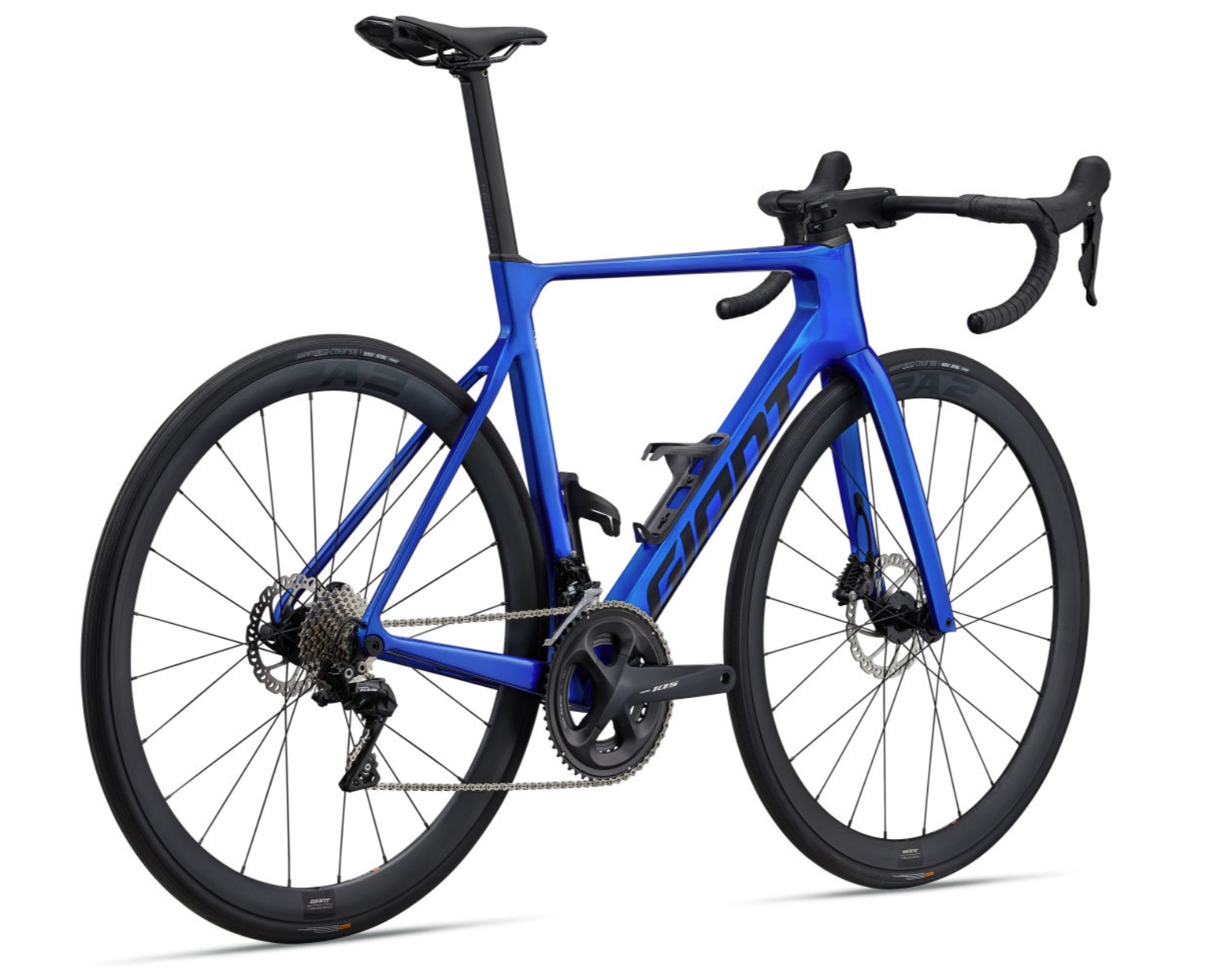

Giant Propel Advanced 2 105 2024 road bike

Sizing Guide and Geometr

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

		S	M	ML	L
A	Seat Tube Length (inch)	19.7	20.5	21.5	22.6
B	Seat Tube Angle	74.0°	73.5°	73.0°	73.0°
C	Top Tube Length (inch)	21.1	21.7	22.2	22.8
D	Head Tube Length (inch)	5.1	5.7	6.5	7.3
E	Head Tube Angle	72.3°	73.0°	73.0°	73.0°
F	Fork Rake (inch)	1.8	1.8	1.8	1.8
G	Trail (inch)	2.4	2.2	2.2	2.2
H	Wheelbase (inch)	38.5	38.6	39	39.6
I	Chain Stay Length (inch)	15.9	15.9	15.9	15.9
J	Bottom Bracket Drop (inch)	2.8	2.8	2.6	2.6
K	Stack (inch)	20.8	21.5	22.1	22.9
L	Reach (inch)	15.1	15.3	15.5	15.8
M	Stand Over Height (inch)	29.6	30.3	31.3	32.3
N	Handlebar Width (inch)	15.7	16.5	16.5	17.3
O	Stem Length (inch)	3.5	3.9	4.3	4.3
P	Crank Length (inch)	6.7	6.8	6.8	6.9
Q	Wheel Size	700C	700C	700C	700C
